We will tell you everything that you need to create a floor plan in AutoCAD with all the proper steps. This blog will tell you everything from setting up your workspace to attending to the final details. So let us go through all the steps one by one, useful tips, shortcuts and best practices to make you design efficiently even if you are new to AutoCAD for beginners.
Before you start your AutoCAD floor plan, it is important that you have a well-prepared workspace. To know how to draw a floor plan in AutoCAD - First, launch AutoCAD and then open a new drawing file. After this, you will start your drawing units in millimetres or meters are commonly used for architectural designs.
Type the “Units” in the command line.
Next, select the desired unit type.
Define the precision and click OK.
After you finish this first part, in the next stage, you need to set up your drawing limits:
Type “Limits” then specify the lower left corner (0,0).
Now enter the upper-right corner.
Type “Zoom” and then “A” (for all) to make the workspace fit the screen.
This step is necessary as setting the grid and snap options will help balance accuracy.
After completing the first step, proceed to the second step by drawing the walls. It is the foundation of every floor plan drawing in AutoCAD.
Type the “line” command or select the rectangular tool to outline the exterior walls.
Next, you can define the wall thickness by applying the offset command. For example, type “offset” to adjust the thickness to 150 mm, select the outer wall line, and click inward.
If there are any unnecessary interactions, then trim them by using the “trim” command.
If you want to make things easier, then you can use layers in this stage. It will allow you to create separate layers for each of the walls, doors, windows or furniture or electrical symbols.
For that, you can use the “layer” command and assign different colours for better visual organisation. If you are using layers, then always keep your layers name different, like walls, outer or anything based on the work, which will save time later to identify.
After completing the previous step, in the third step, you now have your time to position your doors and windows. In this case, AutoCAD allows you with flexible ways to do it:
For the doors, you can use commands like “Arc” and “line” to make openings and swings.
Similarly, for windows, you can use commands like “offset” to define the size of the window and use the “trim” command to cut openings within the wall.
You are also free to insert any pre-drawn dynamic blocks or make your own repetitive use. This will help to make your CAD drawing floor plan even faster and more standardised.
Need a pro tip? You can save your door, window and blocks in a separate library folder in case you want to use the same in one of your future projects as well.
For the next step, you can divide your structure into many functional spaces, like a living room or kitchen or even a bedroom. For that, you can:
Use the “line” or “polyline” command to add partitions or interior walls
You can also level each room using the “text” command
You can simply type the command “text” to specify the insertion point, then type the room name.
If you want to visualise the space even more than in that case, you can add furniture blocks or a custom layout. For example, adding a kitchen counter or a bed slab will help to make the AutoCAD floor plan more realistic and usable for presentations.
Accuracy is needed in anything, and so is it in a professional AutoCAD floor plan tutorial. That is why you can use dimensions and annotations to communicate the exact measurements clearly. For this:
Activate the annotate tab.
Use commands like “dimliner”, “dimaligned”, “dimradius” to use the dimensional walls, doors and windows.
Lastly, use the “leader” command for additional notes or instructions.
When you maintain consistency in text and dimensional styles all along in the plan, you will be able to set up dimensional styles or dimstyles for a standardised font size and placement.
There are many things that an effective floor plan drawing in AutoCAD demands for like electrical points, HVAC system or plumbing fixtures.
Add standardised symbols for switches, sockets or lights.
Apply the use of layers to separate the utility elements for better readability.
Ensure the use of consistent line waves, like thick lines for fixtures and thin ones for structural elements.
This step will make sure that your floor plan communicates in both architectural and engineering details in a clear way.
If your motive is to represent flooring materials like tiles, wood or carpet, then you can use hatch patterns by different shaping spaces:
For this, use the command “hatch” and select a pattern.
Click within the closed boundary.
After that, adjust the scale and angle to fit your layout visually.
This one simple touch will add much more depth and help clients to visualise materials and finishes.
After doing all these steps, you need to review your AutoCAD floor plan carefully. For reviewing your project, follow these points:
Check all the dimensions and annotations for accuracy.
Make sure that all layers are visible and organised.
Use commands like “audit” or “purge” to clear your file from unused blocks or layers.
After reviewing your project, it is now ready for printing. To print your design, open the layout tab:
Select the paper size that you prefer.
Set up the plot scale according to your project's requirements.
Now choose your printer, and ensure line waves and hatching display correctly.
Once it is done, save your plan with the extension “.dwg” and export it. You can keep a PDF to yourself for easy sharing. With all these steps on how to draw a floor plan in AutoCAD, you will be able to nail your project.

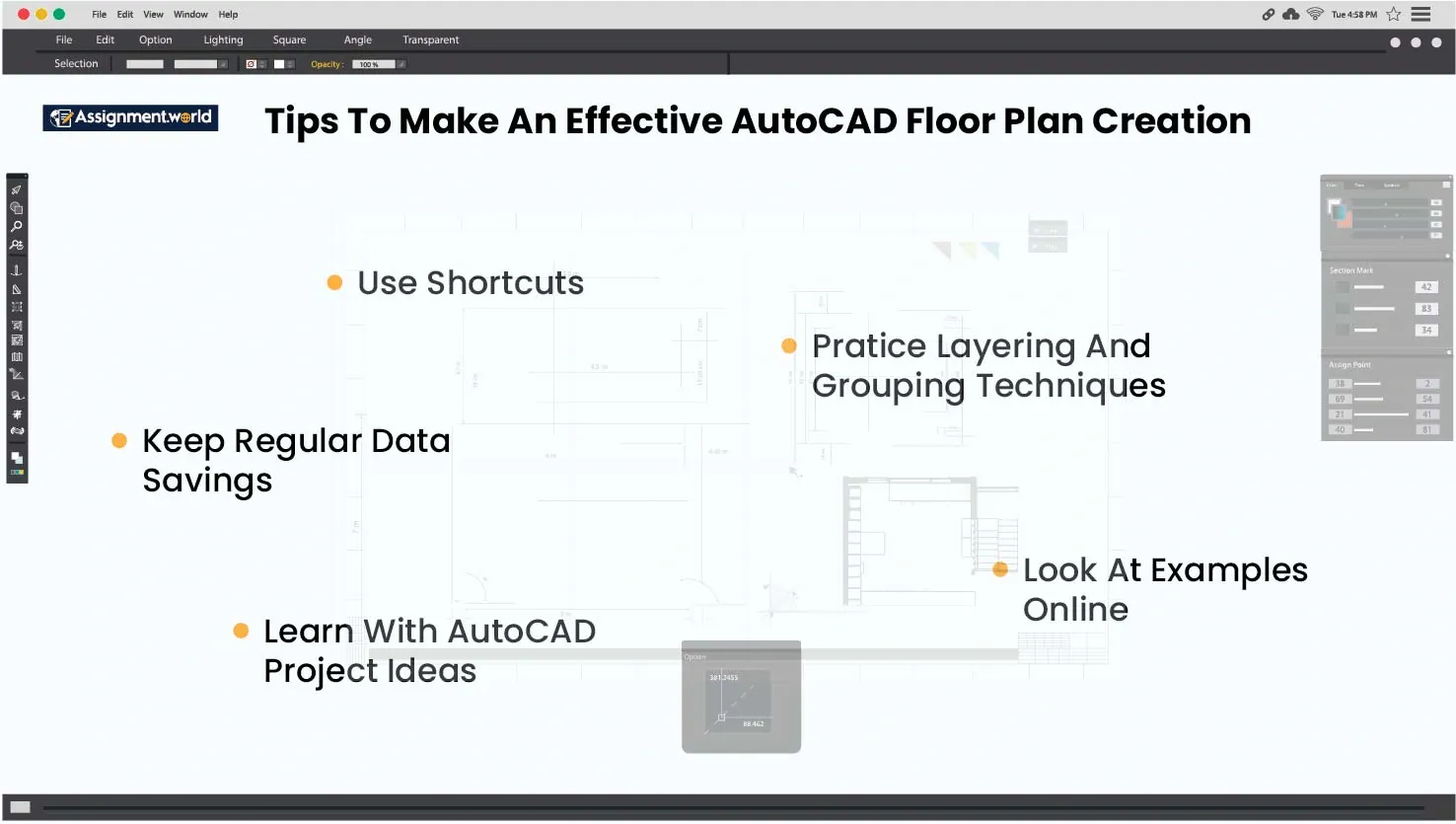

Make use of keyboard shortcuts for easy use, for example, L for line
Maintain regular savings to prevent Data loss
Practice layering and grouping techniques to manage complex plants
Learn from professional examples or AutoCAD project ideas to enhance your creativity.
Whether you are a professional or someone who is searching for AutoCAD for beginners to learn, these tips will always help you maintain clarity.
Do not skip layers; it is important for revisions.
Avoid incorrect scaling. Always verify the scale before printing.
Overlapping lines can cause confusion during rendering or plotting.
Lack of dimensions prevents accuracy.
When you avoid these mistakes, your plans will not only look professional but also functional in real-world scenarios as well.
Learning to design your project in an AutoCAD floor plan requires a lot of patience, practice and time. But by following our practical steps and tips, you will be able to master it with time. So next time you have a problem, keep calm and follow our guide on CAD drawing floor plan and simply apply these practical steps.
